Intake System

Protect your plant from shutdown by effectively
removing all types of debris and jellyfish
using the intake system

SolutionsIntake Screen

Intake Screen

Features


Over 30 years of experience in providing intake systems that cope with all eventualities


An efficient water intake system is essential to keep your plant operational. GET is one of the leading suppliers of intake systems,
we can always design and provide a suitable system for your plant.

Whether your intake is for power, desalination, refining or petrochemical plant, a reliable screen system is essential to ensure your plant
can remain free from all types of debris and marine animals

Intake Screen Design


  • Ensures that at all times all types of debris and jellyfish are kept out of the system
  • Protects the main pumps and all downstream plant
  • Can be customized to deal with the conditions at your plant
  • Operates automatically at all times with manual override if needed
  • Can be fitted with fish protection systems

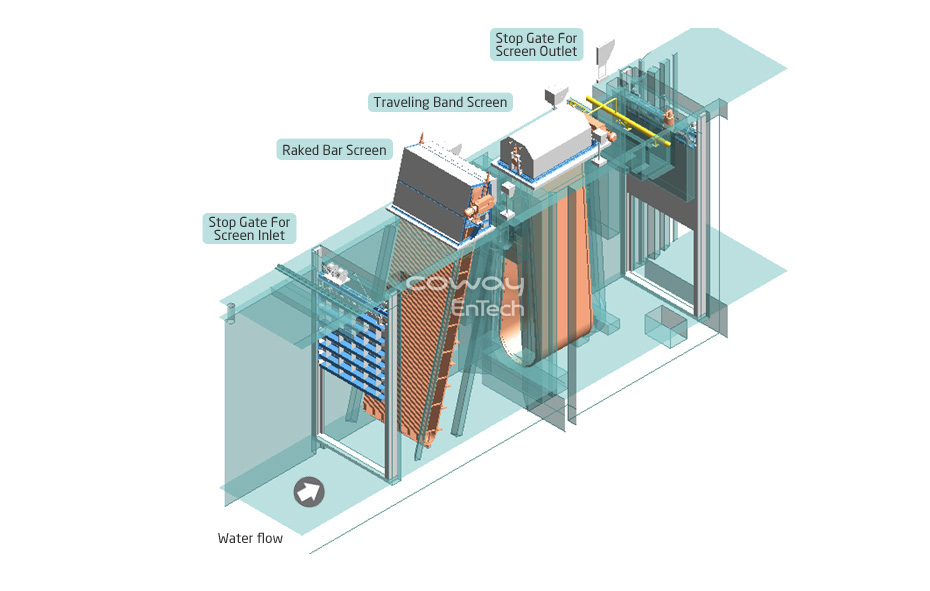

System Process

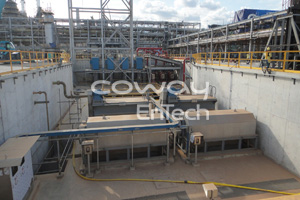

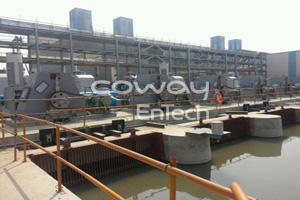

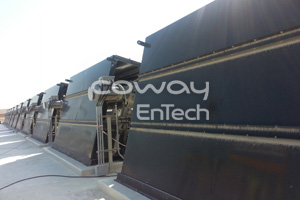

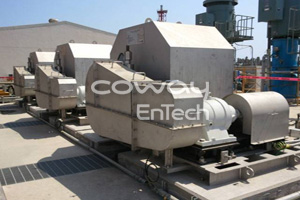

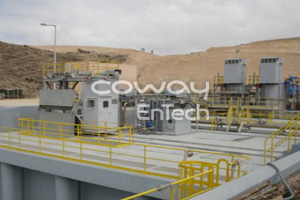

Executed Projects

  • Ras AI Khair desalination plant
    / eawater Intake System

    Capa(m³/r)

    (36,600X11 sets)&(50,700X2 sets)

    Completion date

    2014.12

    Main Process

    Raked bar screen, Traveling band screen

  • POSCO Energy CCPP 7,8,9
    / Seawater Intake System

    Capa(m³/r)

    (16,600X6 sets)&(42,000X2 sets)

    Completion date

    2013.10

    Main Process

    Traveling band screen

  • Petron Bataan Refinery Master Plan 2
    / Seawater Intake System

    Capa(m³/r)

    26,000 x 2 sets

    Completion date

    2013.03

    Main Process

    Raked bar screen, Traveling band screen

  • Manzanillo LNG terminal
    / Seawater intake

    Capa(m³/r)

    5,680X3 sets

    Completion date

    2009.04

    Main Process

    Trash raking maachine, Traveling band screen

  • Salalah methanol plant
    / Seawater intake

    Capa(m³/r)

    13,158X2 sets

    Completion date

    2008.09

    Main Process

    Trash raking machine, Traveling band screen

Trash Raking Machine
Moving Bar Screen
Travelling Band Screen
Drum Screen
Raked Bar Screen
Gripper Raking Machine
